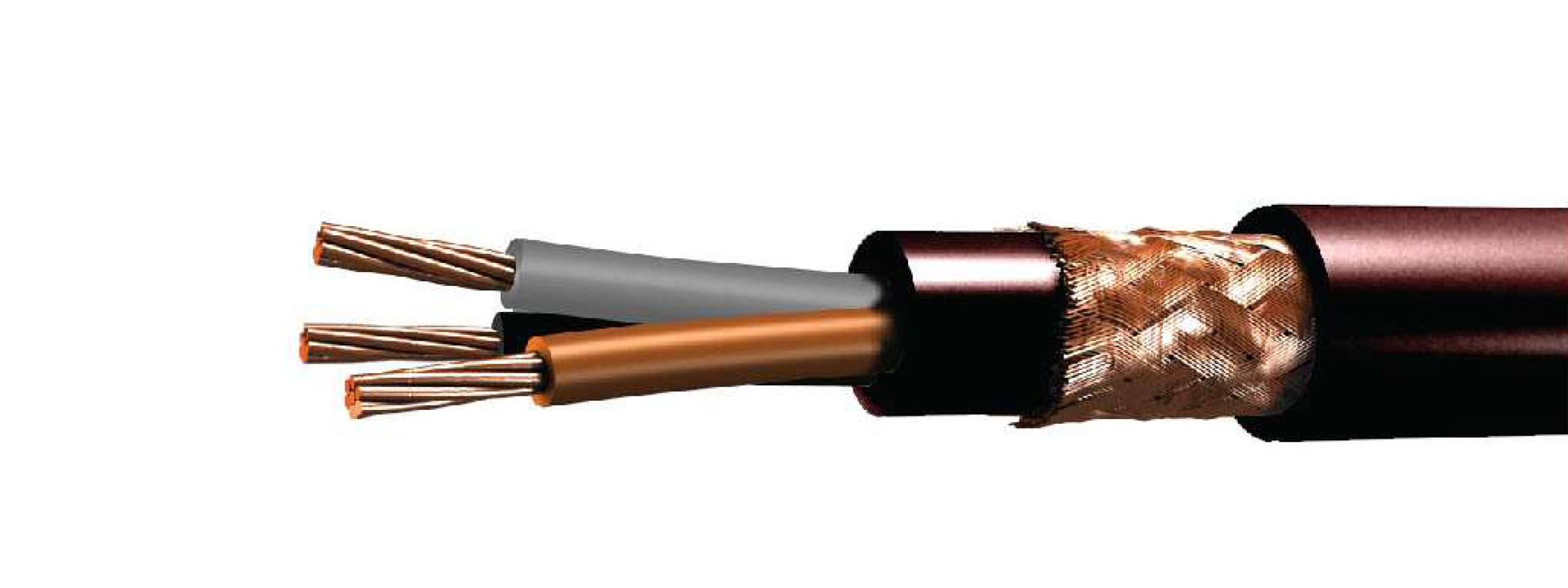

M2XCH
M2XCH is a cable which used as power and control cable installation in ships and offshore platforms. Used as fixed installation cables in various electromechanical and electronic equipments. Due to its’ overall screen the electromagnetic interference is minimized. It can be used as motor supply cable and for frequency converters controlled low voltage AC drives on ships, called VFD applications.
DOWNLOAD TECHNICAL DATA SHEET
CONDUCTOR
Annealed Solid Copper Conductor (re), or
Annealed Stranded Copper Conductor
INSULATION
Crosslinked Polyethylene (XLPE)
Colour : Black, Grey, Brown
BEDDING
Low Smoke Zero Halogen Compound (SIHF-1)
Colour : Black
SCREEN
Braided Bare Copper Wire
OUTER SHEATH
Low Smoke Zero Halogen Compound (SIHF-1)
Colour : Black
Applications
- As power and control cable installation in ships and offshore platforms
- As fixed installation cables in various electromechanical and electronic equipments
Reaction to Chemical
- Halogen Free; IEC-60754-1
- Non-corrosive combustion gas; IEC-60754-2
Reaction to fire
Flame Retardant IEC-60332-1
Maximum service temperature
90°C.
Packaging
Haspel / Cut on demand.
Standards
- IEC-60092/350-351-353-359
