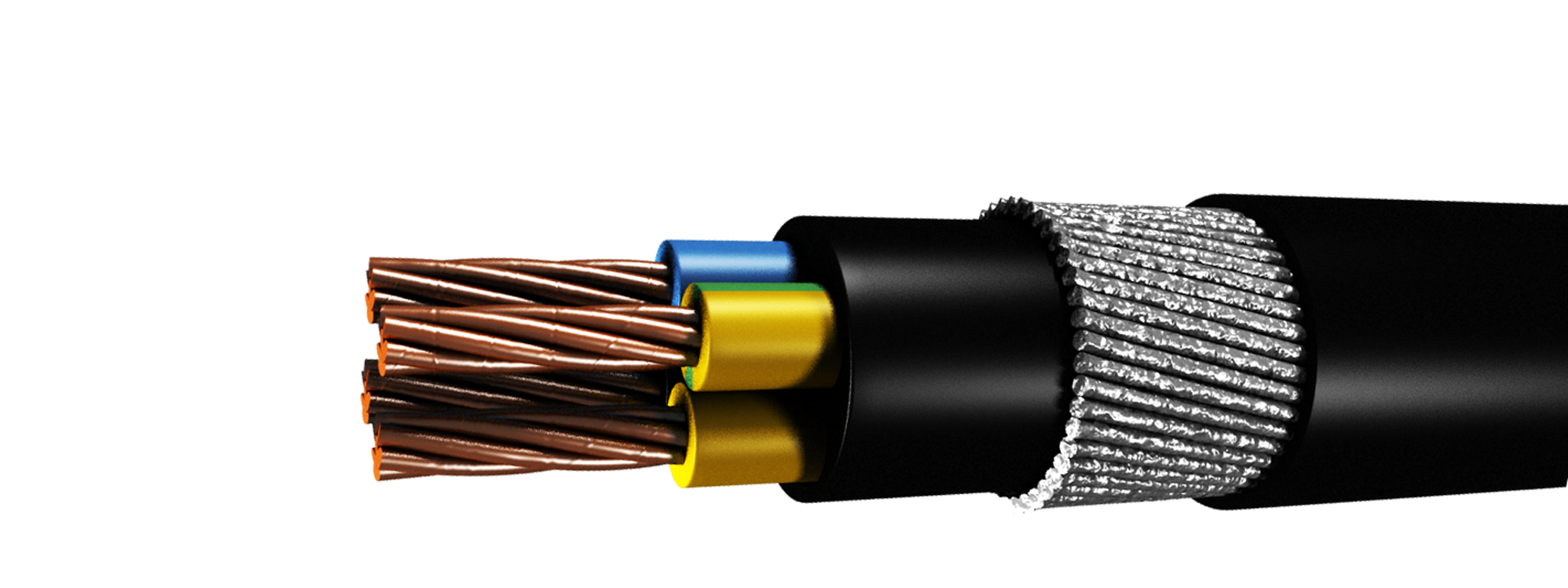

N2XRY
N2XRY are armoured power and control cables used for electricity supply in Low Voltage (LV) installation systems with a voltage rating of 600/1000V. These cables can be used for fixed installation in buildings - fixed on cable trays, in free air, within conduits, or in walls – or for underground use in direct burial and in damp environments where there are risk of mechanical damage.
DOWNLOAD TECHNICAL DATA SHEET
CONDUCTOR
Round Stranded Annealed Copper Wires (rs)
INSULATION
Cross-linked Polyethylene (XLPE)
Colour : Yellow, Blue, Black, Yellow-Green
ARMOUR
Galvanized Steel Wire
OUTER SHEATH
Polyvinyl Chloride (PVC)
Colour : Black
Applications
- For fixed installation in buildings
- For direct burial with mechanical stress risk
Reaction to Chemical
Not specified.
Reaction to fire
Flame Retardant; IEC-60332-1
Maximum service temperature
90°C.
Packaging
Haspel / Cut on demand.
Standards
- SNI IEC 60502-1
