NYBY

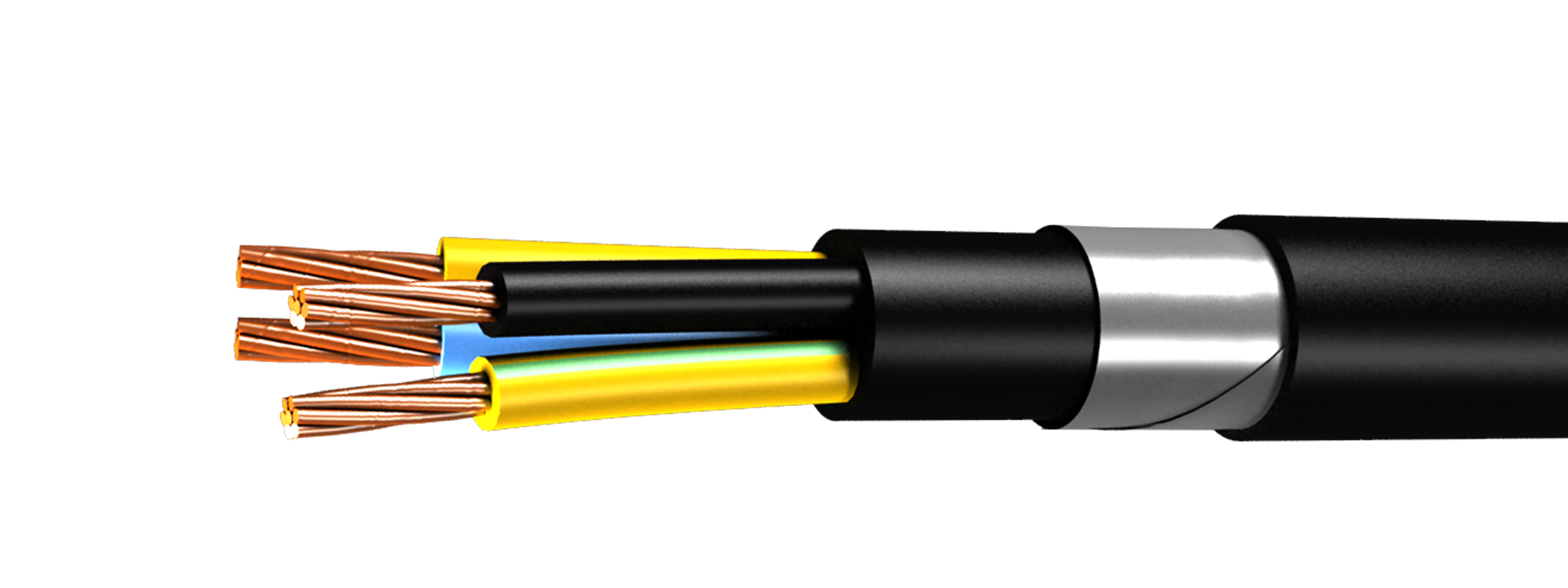

NYBY is a PVC insulated and sheathed Copper conductor cable with galvanised steel tape armour for low voltage power applications. Suitable for static application installations in both internal and external dry and damp environments, including being buried with additional protection. The double layer of galvanised steel tape offers the cable a degree of mechanical protection but minimises the additional weight and overall diameter of the cable compared to the armour of flat or round steel wires.
DOWNLOAD TECHNICAL DATA SHEET
CONDUCTOR
Round Solid Annealed Copper Wires (re), or
Round Stranded Annealed Copper Wires (rs)
INSULATION
Polyvinyl Chloride (PVC)
Colour : Yellow, Blue , Yellow – Green
ARMOUR
Double Galvanized Steel Tape
OUTER SHEATH
Polyvinyl Chloride (PVC)
Colour : Black
Applications
- Used as power cable for indoor or outdoor
- Suitable for dry and damp environment
- Direct burial with mechanical stress
Reaction to Chemical
Not specified.
Reaction to fire
Flame Retardant; IEC-60332-1
Maximum service temperature
90°C.
Packaging
Haspel / Cut on demand.
Standards
- SNI IEC 60502-1 : 2009
